Earth Connecting Elements for Railway Applications

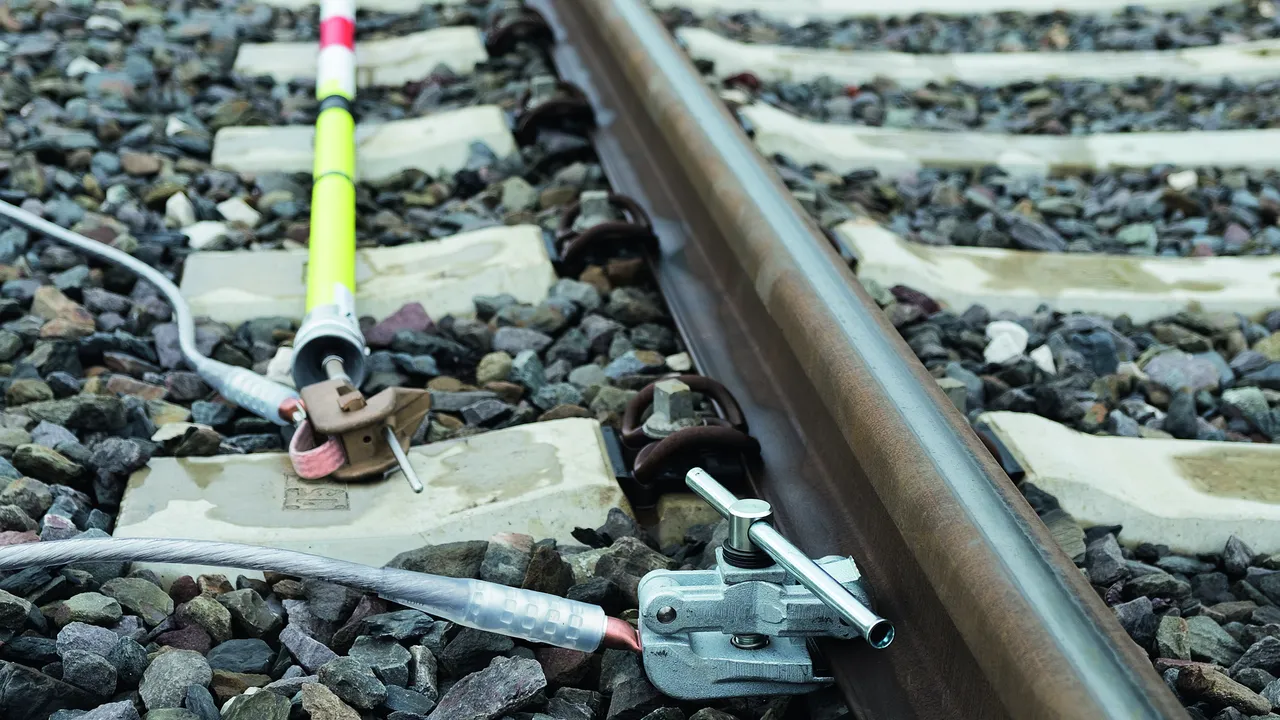

Safe earth connection elements for railway applications

Clamp for Railway Tracks with Tommy Bar

With detachable tommy bar (locking spring).
For profile-free earthing of track profiles S49, S54, S64 and UIC60.

2 Products

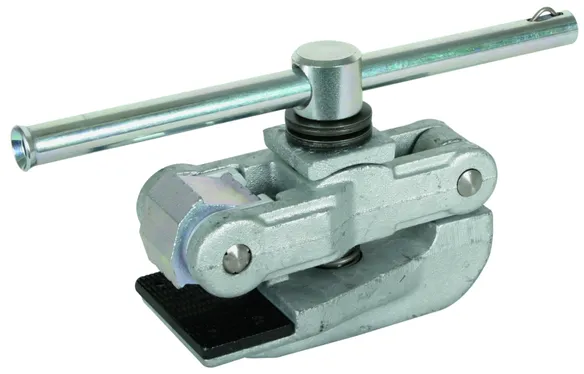

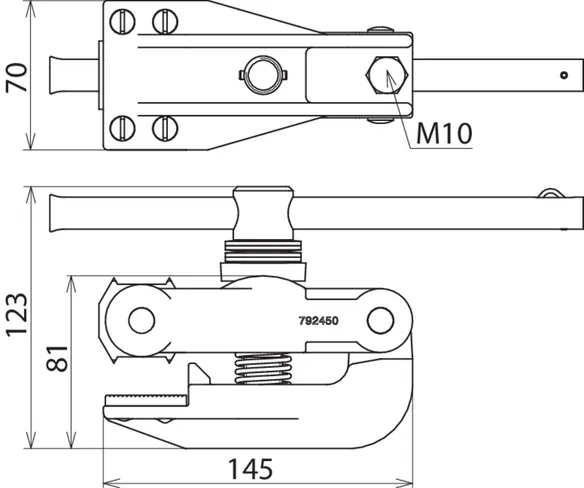

Part No. 792450 SAK PFE KN

GTIN 4013364051744, Customs tariff No. (EU): 85359000, Gross weight: 2.82 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Anti-rotation cable lug PK2 (Ø10.5 mm)
Cable material Cu
For cable cross-section 50 mm2
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 3 Ebgw 01.53 Bl. 1
DB material No. 157 535

Product 792450 was added to Notepad.

Go to Notepad

Product 792450 was added to the cart.

Go to Web-Shop

Part No. 792451 SAK PFE KN AB29

GTIN 4013364230170, Customs tariff No. (EU): 85359000, Gross weight: 2.82 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Anti-rotation cable lug PK2 (Ø10.5 mm)
Cable material Al
For cable cross-section 70 mm2
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. Ebgw 01.82

Product 792451 was added to Notepad.

Go to Notepad

Product 792451 was added to the cart.

Go to Web-Shop

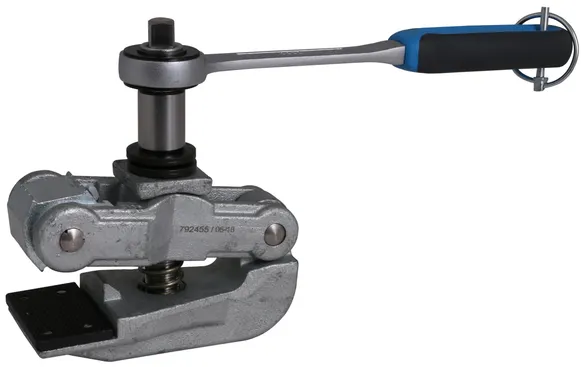

Clamp for Railway Tracks with Ratchet

With detachable ratchet.
For profile-free earthing of track profiles S49, S54, S64 and UIC60.

2 Products

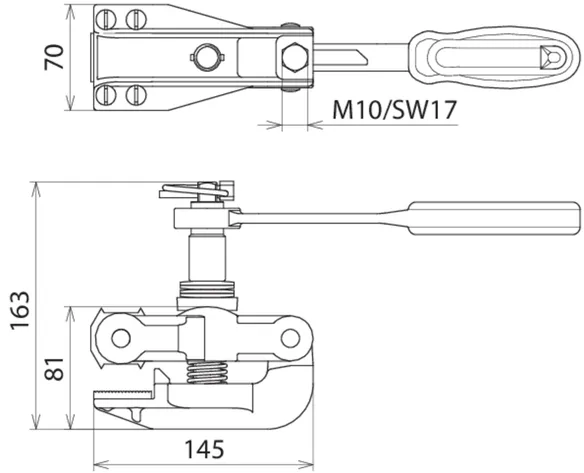

Part No. 792455 SAK PFE ARA

GTIN 4013364376724, Customs tariff No. (EU): 85359000, Gross weight: 3.07 kg, PU: 1.00 pc(s)

Predecessor

Images

Additional information



Technical data

Anti-rotation cable lug PK2 (Ø10.5 mm)
Cable material Cu
For cable cross-section 50 mm2
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.53 Bl. 2

Product 792455 was added to Notepad.

Go to Notepad

Product 792455 was added to the cart.

Go to Web-Shop

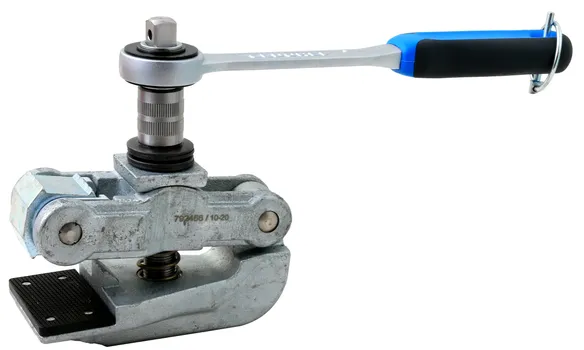

Part No. 792456 SAK PFE ARA AB29

GTIN 4013364446625, Customs tariff No. (EU): 85359000, Gross weight: 3.20 kg, PU: 1.00 pc(s)

Images

Additional information



Technical data

Anti-rotation cable lug PK2 (Ø10.5 mm)
Cable material Al
For cable cross-section 70 mm2
Max. short-circuit current Ik 0.06 s 32.0 kA
DB drawing No. 3 Ebgw 01.83-1

Product 792456 was added to Notepad.

Go to Notepad

Product 792456 was added to the cart.

Go to Web-Shop

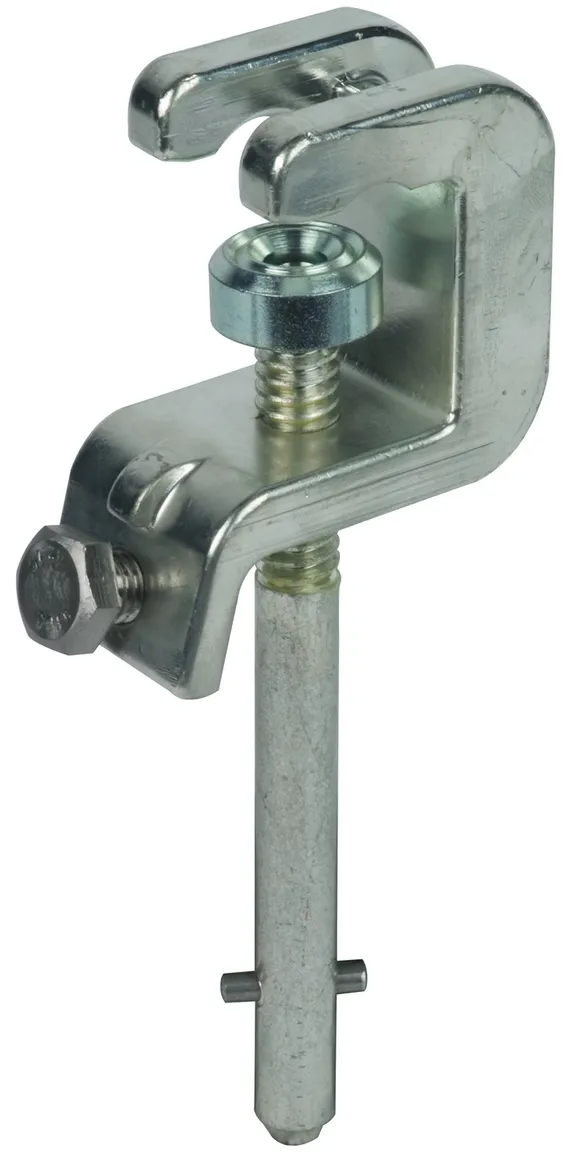

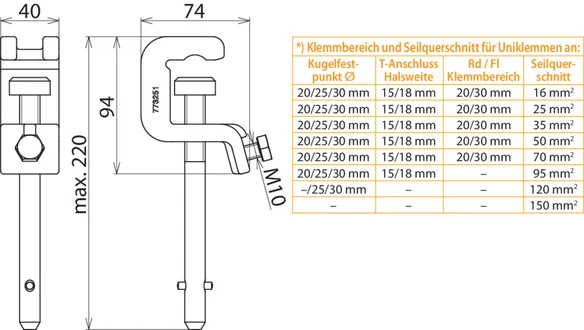

Universal Clamp, T Pin Shaft

T pin according to DIN 48087.

1 Product

Part No. 773251 UK K25 FL30 SQL

GTIN 4013364005990, Customs tariff No. (EU): 85359000, Gross weight: 901.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 / 30 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
For cable cross section Cu 50 mm2
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 4 Ebgw 01.59
DB material No. 157 538

Product 773251 was added to Notepad.

Go to Notepad

Product 773251 was added to the cart.

Go to Web-Shop

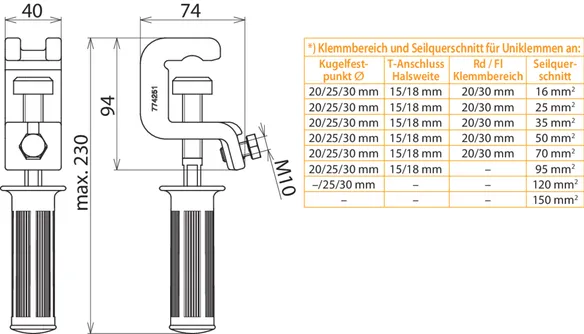

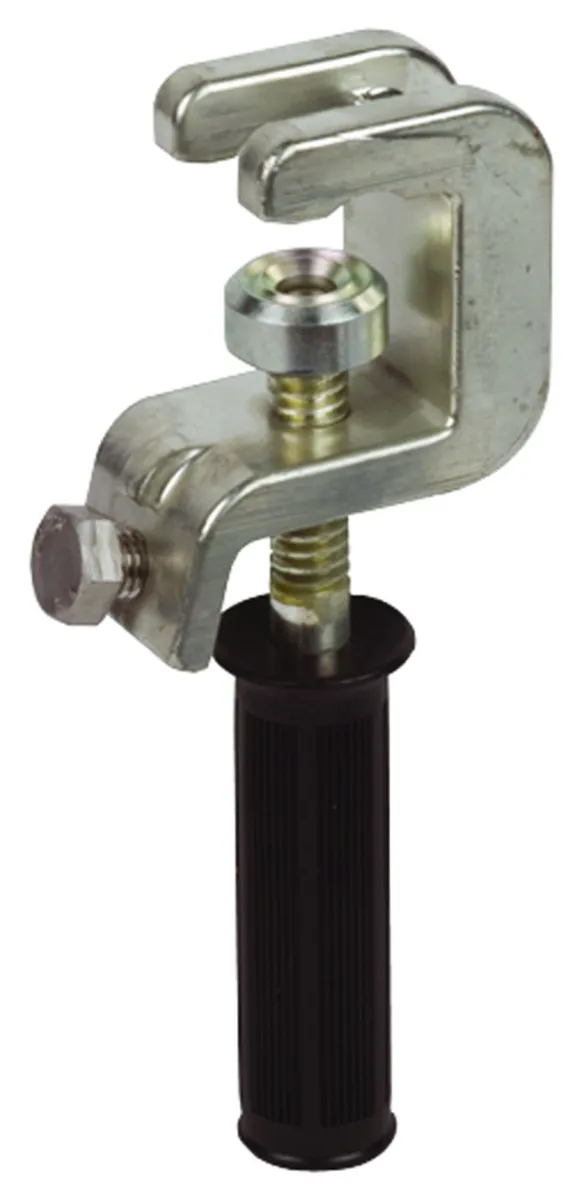

Universal Clamp with Handle

1 Product

Part No. 774251 UK K25 FL30 HG

GTIN 4013364006003, Customs tariff No. (EU): 85359000, Gross weight: 955.00 g, PU: 1.00 pc(s)

Images

Additional information



Technical data

For fixed ball point Ø 25 / 30 mm
Anti-rotation cable lug PK2 (Ø10.5 mm)
For cable cross section Cu 50 mm2
Max. short-circuit current Ik 0.06 s 34.0 kA
DB drawing No. 4 Ebgw 01.64
DB material No. 157 537

Product 774251 was added to Notepad.

Go to Notepad

Product 774251 was added to the cart.

Go to Web-Shop
