Connection Clamps

Clamps for connection to steel constructions and steel sheets.

Lengthwise or crosswise connection

2 Products

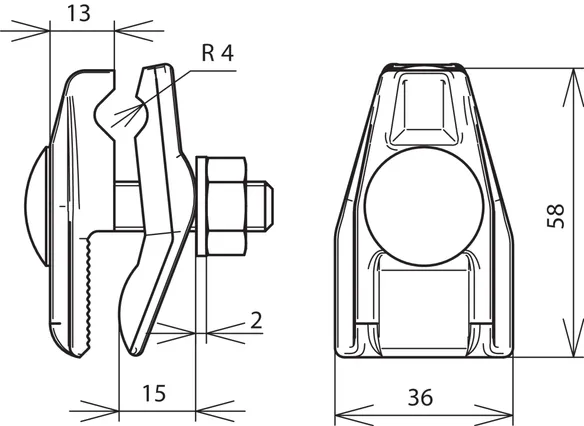

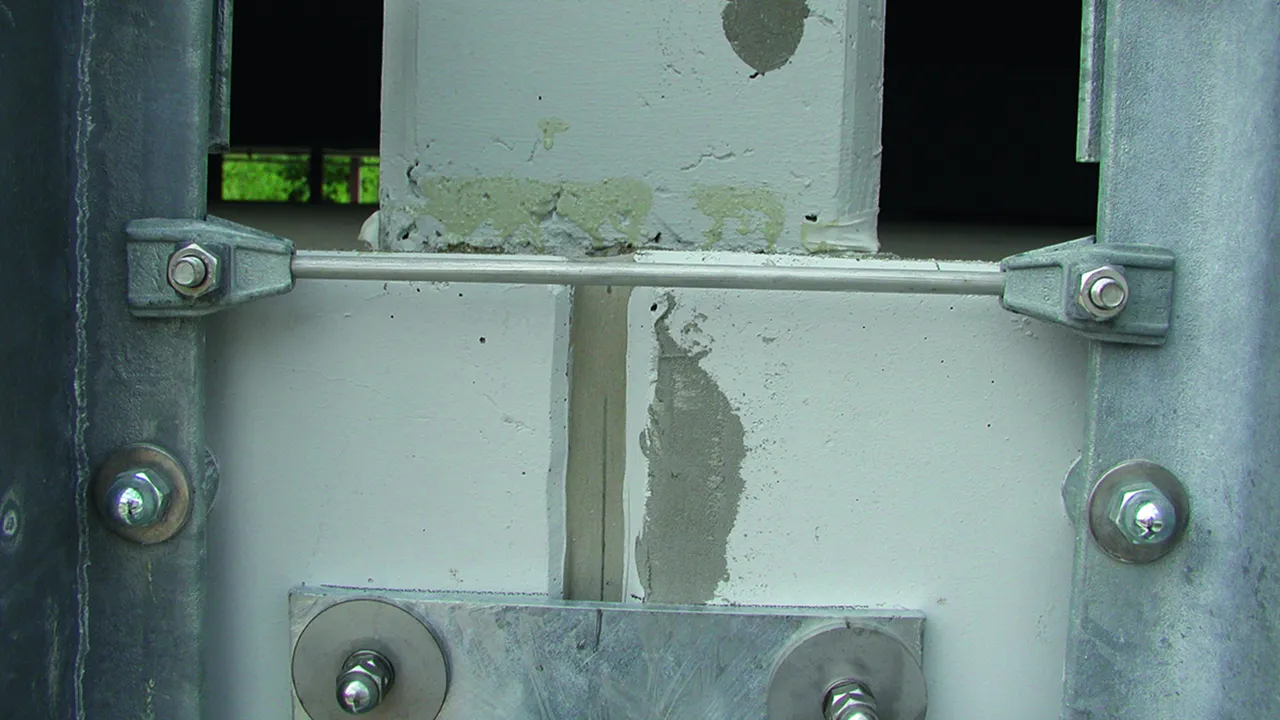

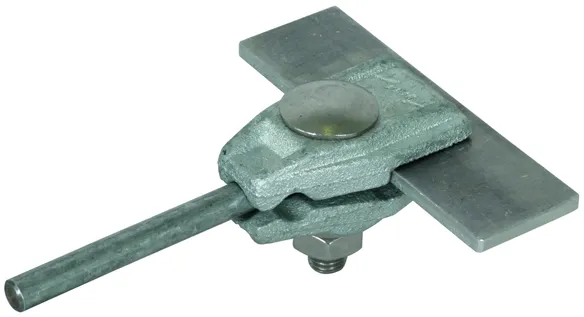

Part No. 371009 AK 7.10 FRM10X45 KBF0.4 12 TGTZN

GTIN 4013364024656, Customs tariff No. (EU): 85359000, Gross weight: 210.00 g, PU: 20.00 pc(s)

Images

Additional information

Connecting clamp, lengthwise or crosswise, MCI/tZn
Terminal clamp for connection to steel constructions and steel sheets
Clamping range: 0.4-12 mm
Material of clamp: MCI/tZn
Screw: M10 x 45 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 FRM10X45 KBF0.4 12 TGTZN
Part No.: 371009
or equivalent.

Certificates



Technical data

Clamping range 0.4-12 mm
Material of clamp MCI/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 371009 was added to Notepad.

Go to Notepad

Product 371009 was added to the cart.

Go to Web-Shop

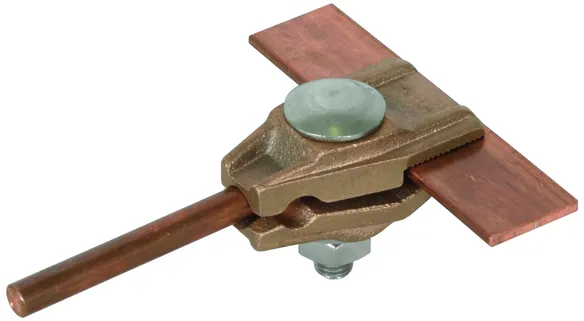

Part No. 371007 AK 7.10 FRM10X45 KBF0.4 12 RG

GTIN 4013364024663, Customs tariff No. (EU): 85359000, Gross weight: 235.00 g, PU: 1.00 pc(s)

Images

Additional information

Connecting clamp, lengthwise or crosswise, RCB
Terminal clamp for connection to steel constructions and steel sheets
Clamping range: 0.4-12 mm
Material of clamp: Gunmetal
Screw: M10 x 45 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 FRM10X45 KBF0.4 12 RG
Part No.: 371007
or equivalent.

Certificates



Technical data

Clamping range 0.4-12 mm
Material of clamp Gunmetal
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 371007 was added to Notepad.

Go to Notepad

Product 371007 was added to the cart.

Go to Web-Shop

Lengthwise connection

1 Product

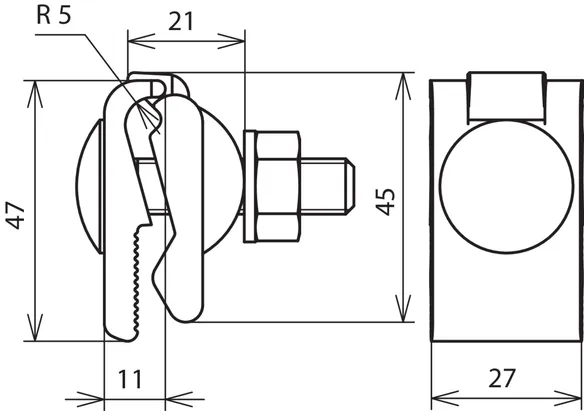

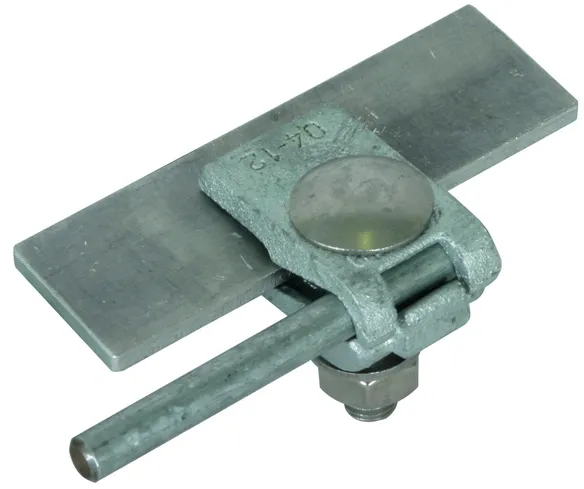

Part No. 371008 AK 4.10 FRM10X45 KBF0.4 12 TGTZN

GTIN 4013364024670, Customs tariff No. (EU): 85359000, Gross weight: 150.00 g, PU: 50.00 pc(s)

Images

Additional information

Connecting clamp, lengthwise, MCI/tZn
Terminal clamp for connection to steel constructions and steel sheets
Clamping range: 0.4-12 mm
Material of clamp: MCI/tZn
Screw: M10 x 45 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 4.10 FRM10X45 KBF0.4 12 TGTZN
Part No.: 371008
or equivalent.

Certificates



Technical data

Clamping range 0.4-12 mm
Material of clamp MCI/tZn
Clamping range Rd 4-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 371008 was added to Notepad.

Go to Notepad

Product 371008 was added to the cart.

Go to Web-Shop

Lengthwise or crosswise connection with KS screw

1 Product

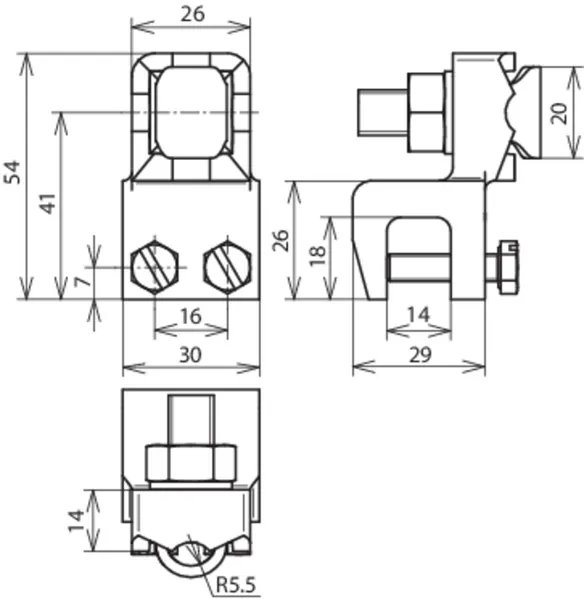

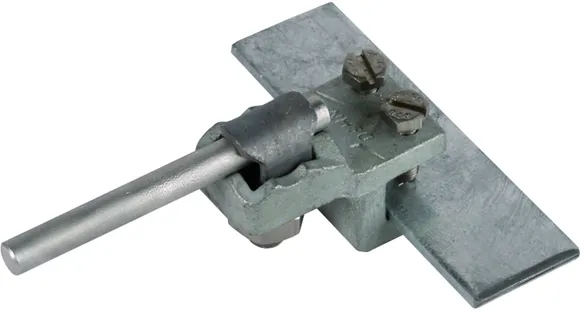

Part No. 370014 AK 7.10 KSV KBF1 12 TGTZN

GTIN 4013364096387, Customs tariff No. (EU): 85359000, Gross weight: 192.00 g, PU: 25.00 pc(s)

Images

Additional information

Connecting clamp with KS screw, lengthwise or crosswise, MCI/tZn
Terminal clamp for connection to steel constructions and steel sheets
Clamping range: 1-12 mm
Material of clamp: MCI/tZn
Screw: M6 x 25 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV KBF1 12 TGTZN
Part No.: 370014
or equivalent.

Certificates



Technical data

Clamping range 1-12 mm
Material of clamp MCI/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.

Product 370014 was added to Notepad.

Go to Notepad

Product 370014 was added to the cart.

Go to Web-Shop

Lengthwise or crosswise connection with KS screw

1 Product

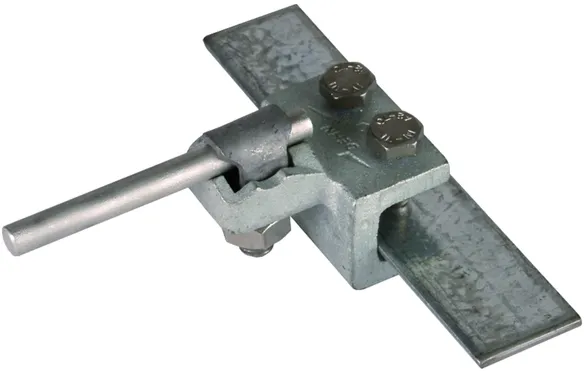

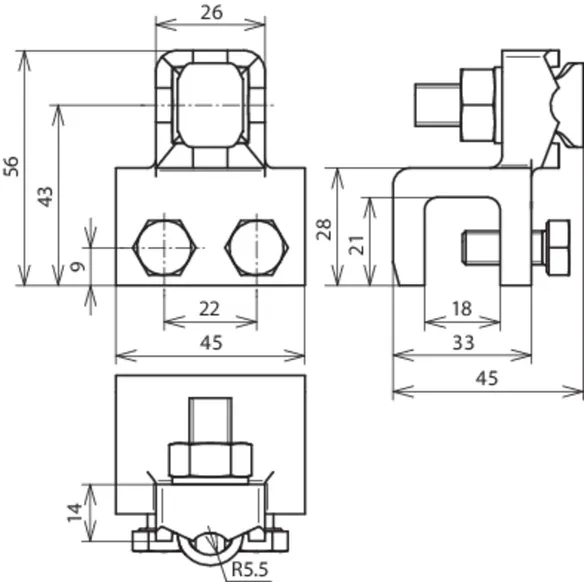

Part No. 370018 AK 7.10 KSV KBF8 18 TGTZN

GTIN 4013364024724, Customs tariff No. (EU): 85359000, Gross weight: 294.00 g, PU: 25.00 pc(s)

Images

Additional information

Connecting clamp with KS screw, lengthwise or crosswise, MCI/tZn
Terminal clamp for connection to steel constructions and steel sheets
Clamping range: 8-18 mm
Material of clamp: MCI/tZn
Screw: M8 x 20 mm
Standard: EN 62561-1

Brand: DEHN
Type: AK 7.10 KSV KBF8 18 TGTZN
Part No.: 370018
or equivalent.

Certificates



Technical data

Clamping range 8-18 mm
Material of clamp MCI/tZn
Clamping range Rd 7-10 mm
Standard EN 62561-1
*) For exact assignment see test certificate.
