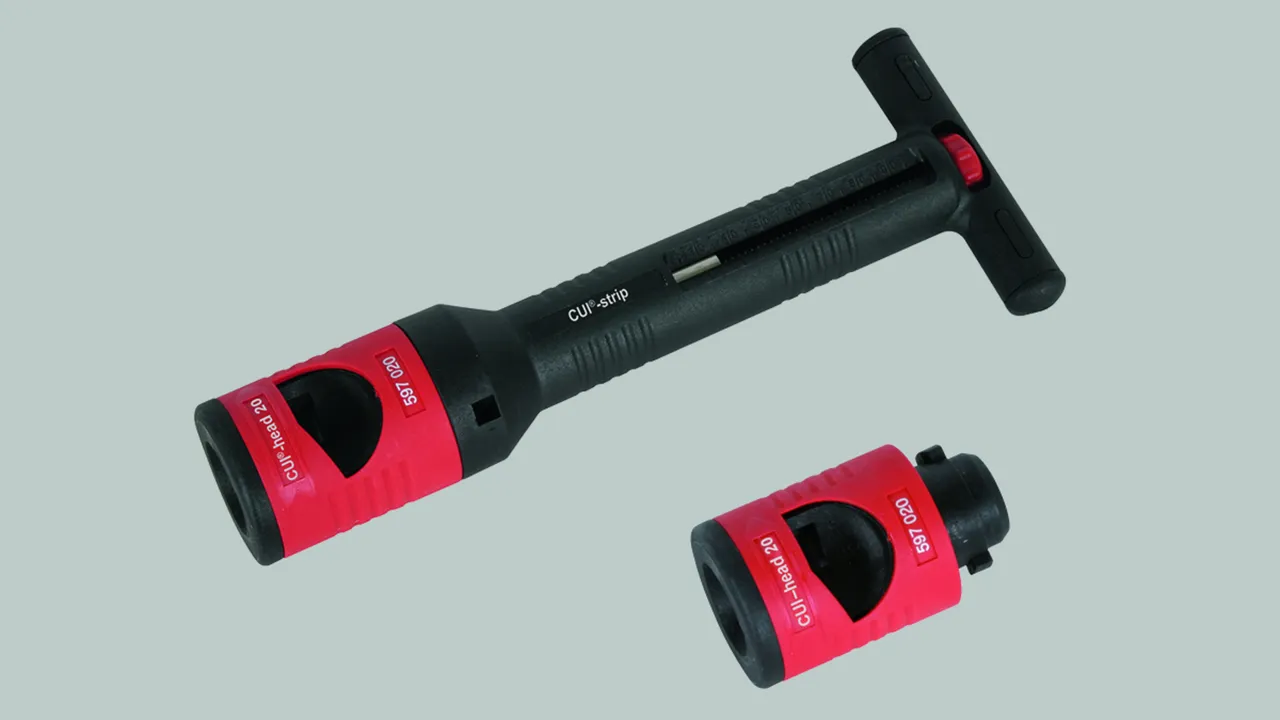

Stripping Tool for CUI Conductors

Tool for stripping the XLPE insulated CUI Conductor (outer diameter 20 mm).
  • Tool consists of a handle and an exchangeable cutting heads
  • Stripping length of the CUI Conductor is adjustable in steps of 0.2 mm (lock points) using the knob in the handle. The dial on the handle shows the length set.
HandlingPosition the cutting head at the cut-off end of the conductor and turn clockwise applying light pressure to cut/strip it.

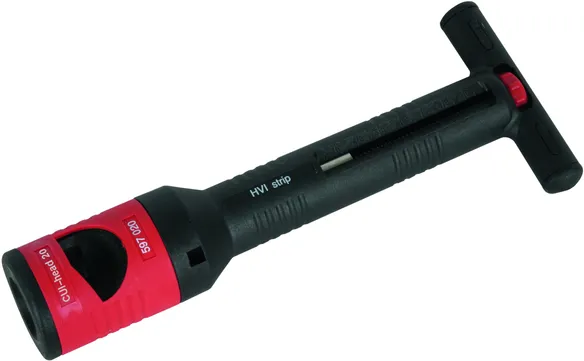

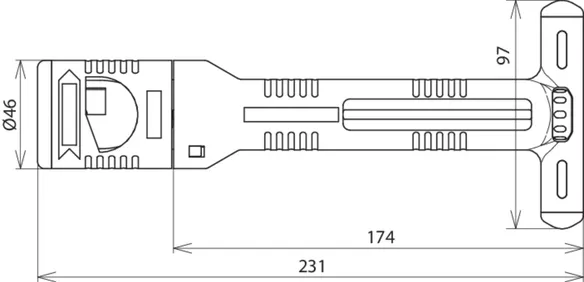

CUI-strip 20

1 Product

Part No. 597320 CUI STRIP 20

GTIN 4013364154940, Customs tariff No. (EU): 82055980, Gross weight: 442.00 g, PU: 1.00 pc(s)

Images

Additional information



Brand: DEHN
Type: CUI STRIP 20
Part No.: 597320
or equivalent.



Technical data

Diameter Ø conductor 20 mm
Material of moulded part plastic
Material of blade StSt

Product 597320 was added to Notepad.

Go to Notepad

Product 597320 was added to the cart.

Go to Web-Shop

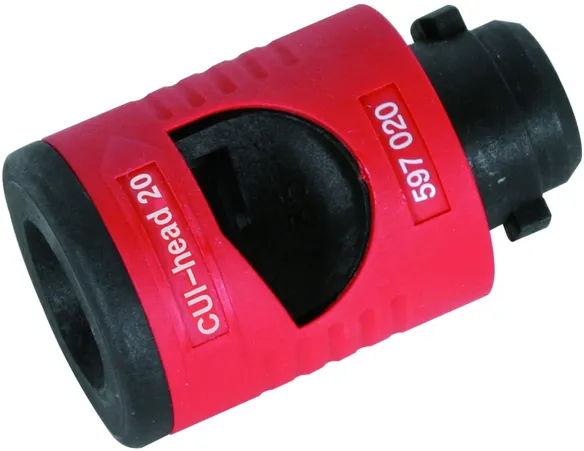

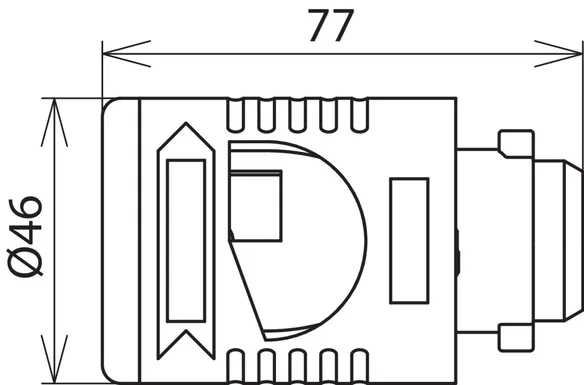

CUI-head 20

Toolless exchange of the cutting head via a bayonet coupling.

1 Product

Part No. 597020 CUI HEAD 20

GTIN 4013364154957, Customs tariff No. (EU): 82055980, Gross weight: 155.00 g, PU: 1.00 pc(s)

Images

Additional information



Brand: DEHN
Type: CUI HEAD 20
Part No.: 597020
or equivalent.



Technical data

Diameter Ø conductor 20 mm
Material of moulded part plastic
Material of blade StSt

Product 597020 was added to Notepad.

Go to Notepad

Product 597020 was added to the cart.

Go to Web-Shop
