Roof Conductor Holders for Ridge and Hip Tiles

For fixing air-termination conductors on the ridge.

FIRSTsnap

For attaching to the ridge clamps of dry ridges, with conductor holder DEHNsnap, loose conductor leading.

2 Products

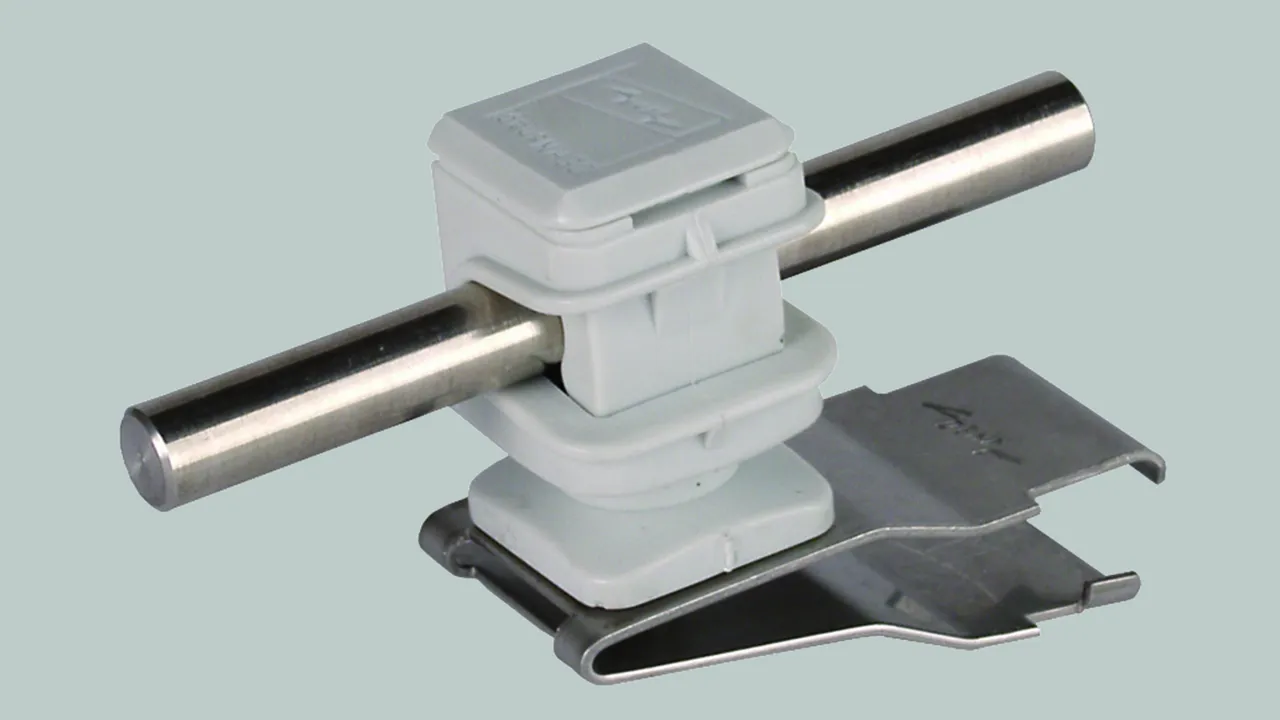

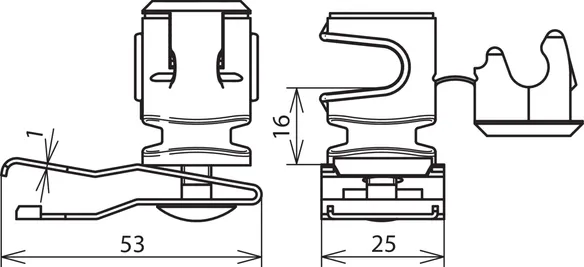

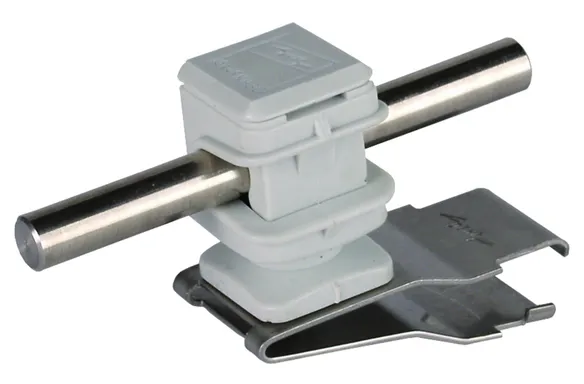

Part No. 204029 LH FS 8 H16 GR V2A

GTIN 4013364032286, Customs tariff No. (EU): 85389099, Gross weight: 37.80 g, PU: 50.00 pc(s)

Images

Additional information

Pitched roofs - FIRSTsnap roof conductor holder, height 16 mm
Roof conductor holder for ridge and hip tiles for fixing air-termination conductors on the ridge
FIRSTsnap, for attaching on the ridge clamp of dry ridges
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: grey ●

Brand: DEHN
Type: LH FS 8 H16 GR V2A
Part No.: 204029
or equivalent.



Technical data

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder grey ●
Conductor holder support Rd 8 mm

Product 204029 was added to Notepad.

Go to Notepad

Product 204029 was added to the cart.

Go to Web-Shop

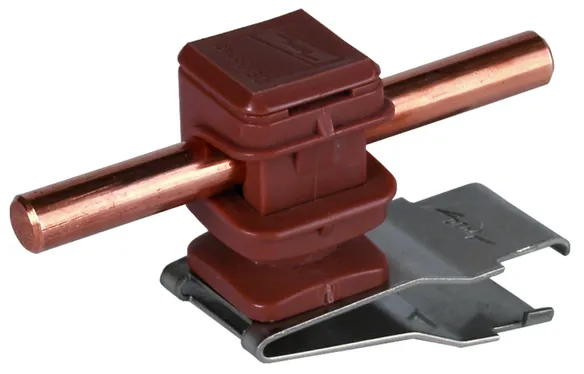

Part No. 204039 LH FS 8 H16 K BR V2A

GTIN 4013364032293, Customs tariff No. (EU): 85389099, Gross weight: 37.60 g, PU: 50.00 pc(s)

Images

Additional information

Pitched roofs - FIRSTsnap roof conductor holder, height 16 mm
Roof conductor holder for ridge and hip tiles for fixing air-termination conductors on the ridge
FIRSTsnap, for attaching on the ridge clamp of dry ridges
Material of roof conductor holder: StSt
Height of conductor holder: 16 mm
Material of conductor holder: plastic
Colour of conductor holder: brown ●

Brand: DEHN
Type: LH FS 8 H16 K BR V2A
Part No.: 204039
or equivalent.



Technical data

Material of roof conductor holder StSt
Height of conductor holder 16 mm
Material of conductor holder plastic
Colour of conductor holder brown ●
Conductor holder support Rd 8 mm

Product 204039 was added to Notepad.

Go to Notepad

Product 204039 was added to the cart.

Go to Web-Shop

Two-screw cleat with spacer and elastic sealing

For tiled, slated and corrugated sheet roofs, with weather-resistant spacer and elastic sealing, fixed conductor leading.

1 Product

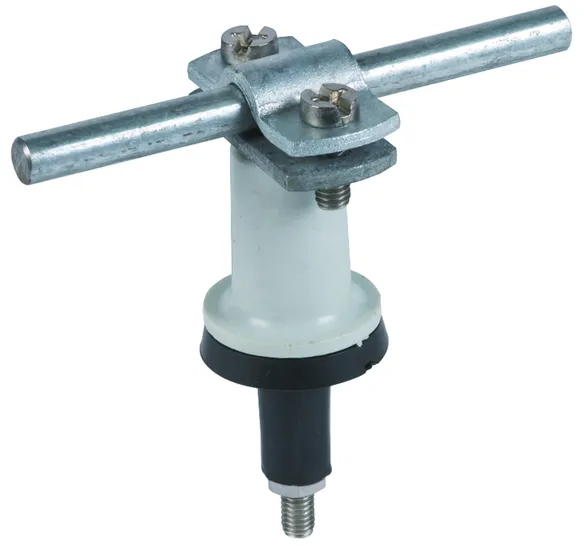

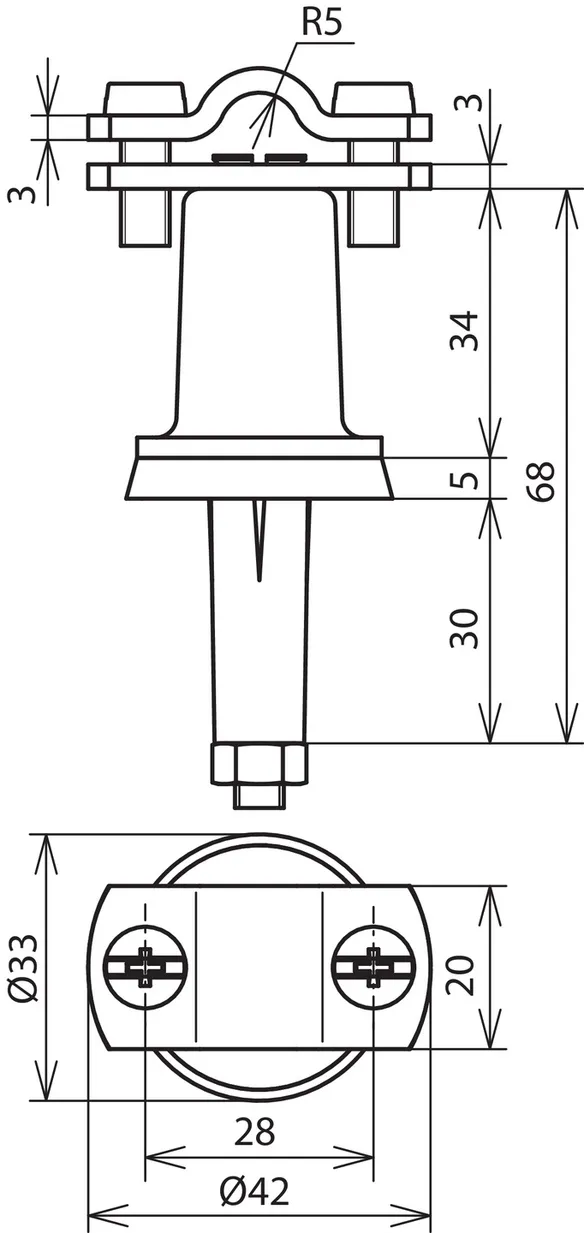

Part No. 216000 DLH ZS 7.10 FL20 KT12 STTZN

GTIN 4013364020054, Customs tariff No. (EU): 85389099, Gross weight: 78.00 g, PU: 25.00 pc(s)

Images

Additional information

Two-screw cleat with spacer and elastic sealing
Roof conductor holder for ridge and hip tiles for fixing air-termination conductors on the ridge
for tiled, slated and corrugated plate roofing, with weather-resistant clamp bush
Material of roof conductor holder: plastic
Bore : Ø12 mm
Material of conductor holder: St/tZn

Brand: DEHN
Type: DLH ZS 7.10 FL20 KT12 STTZN
Part No.: 216000
or equivalent.



Technical data

Material of roof conductor holder plastic
Bore Ø12 mm
Material of conductor holder St/tZn
Conductor holder support Rd 7-10 mm
Conductor holder support Fl 20 mm
