Part No. 900780 SPD+POP 2 255 C25

GTIN 4013364156203, Customs tariff No. (EU): 85363030, Gross weight: 404.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Surge arrester SPD+POP 2 255 C25
Compact surge arrester for transients and
mains-frequency surges with integrated
miniature circuit breaker
Type 2 SPD according to EN 61643-11,
POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices
do not have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C25
Part No.: 900780
or equivalent.

Certificates

Technical data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / flexible
Cross-sectional area (L, N) (max.)	16 mm²flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm²solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm²solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
SPD according to IEC 61643-11	class II
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900780 was added to Notepad.

Go to Notepad

Product 900780 was added to the cart.

Go to Web-Shop

Part No. 900781 SPD+POP 2 255 C32

GTIN 4013364156210, Customs tariff No. (EU): 85363030, Gross weight: 425.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Surge arrester SPD+POP 2 255 C32
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not
have to be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C32
Part No.: 900781
or equivalent.

Certificates

Technical data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900781 was added to Notepad.

Go to Notepad

Product 900781 was added to the cart.

Go to Web-Shop

Part No. 900782 SPD+POP 2 255 C40

GTIN 4013364156227, Customs tariff No. (EU): 85363030, Gross weight: 424.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Surge arrester SPD+POP 2 255 C40
Compact surge arrester for transients and mains-frequency
surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and
mains-frequency surges
Prewired complete unit, the individual devices do not have to
be additionally wired
Number of poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 4 modules

Brand: DEHN
Type: SPD+POP 2 255 C40
Part No.: 900782
or equivalent.

Certificates

Technical data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	4 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900782 was added to Notepad.

Go to Notepad

Product 900782 was added to the cart.

Go to Web-Shop

Part No. 900785 SPD+POP 4 255 C25

GTIN 4013364156234, Customs tariff No. (EU): 85363030, Gross weight: 730.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

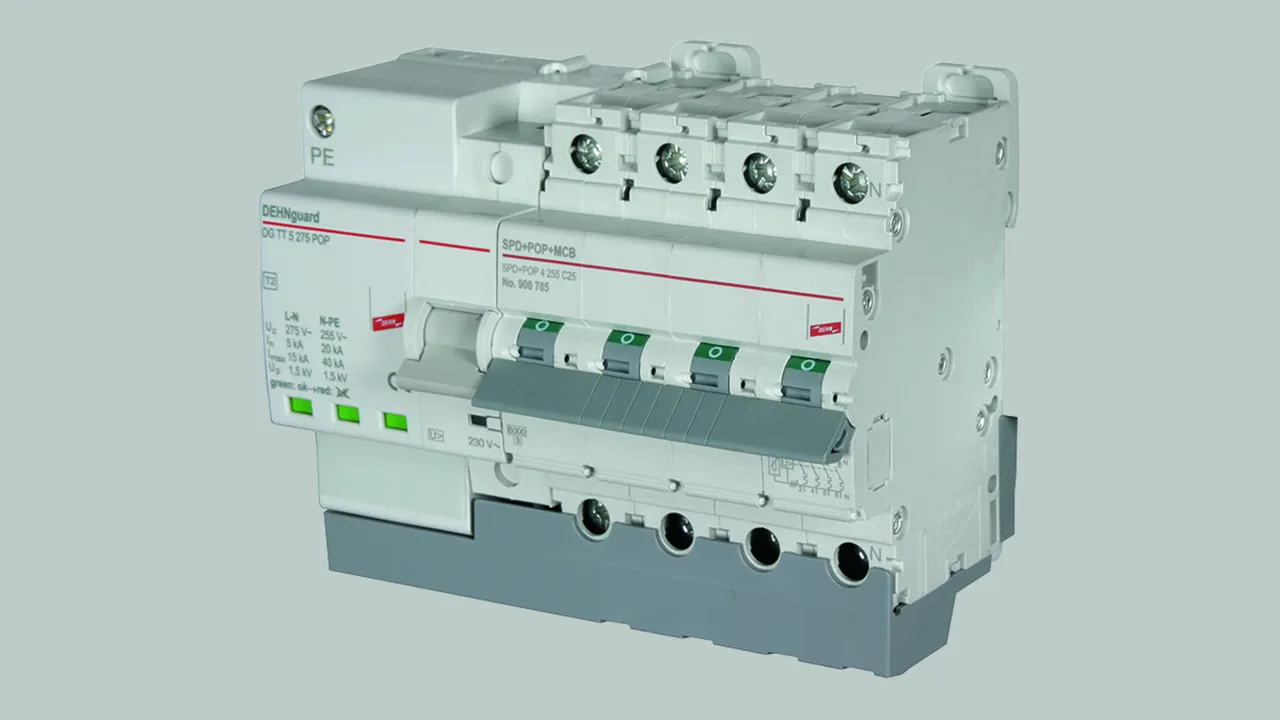

Surge arrester SPD+POP 4 255 C25
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C25
Part No.: 900785
or equivalent.

Certificates

Technical data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm²flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900785 was added to Notepad.

Go to Notepad

Product 900785 was added to the cart.

Go to Web-Shop

Part No. 900786 SPD+POP 4 255 C32

GTIN 4013364156241, Customs tariff No. (EU): 85363030, Gross weight: 763.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Surge arrester SPD+POP 4 255 C32
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C32
Part No.: 900786
or equivalent.

Certificates

Technical data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900786 was added to Notepad.

Go to Notepad

Product 900786 was added to the cart.

Go to Web-Shop

Part No. 900787 SPD+POP 4 255 C40

GTIN 4013364156258, Customs tariff No. (EU): 85363030, Gross weight: 769.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Surge arrester SPD+POP 4 255 C40
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C40
Part No.: 900787
or equivalent.

Certificates

Technical data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm²stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900787 was added to Notepad.

Go to Notepad

Product 900787 was added to the cart.

Go to Web-Shop

Part No. 900788 SPD+POP 4 255 C63

GTIN 4013364156265, Customs tariff No. (EU): 85363030, Gross weight: 773.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Surge arrester SPD+POP 4 255 C63
Compact surge arrester for transients and mains-frequency surges with integrated miniature circuit breaker
Type 2 SPD according to EN 61643-11, POP according to EN 50550
Comprehensive protection against transients and mains-frequency surges
Prewired complete unit, the individual devices do not have to be additionally wired
Number of poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Max. continuous operating voltage: 275 V a.c.
Voltage protection level: <= 1.5 kV
Nominal discharge current: 5 kA / 20 kA
Energy coordination according to
EN 62305-4 with type 1 and
type 3 arresters of the Red/Line series
SPD monitoring: Thermo Dynamic Control
Operating state and fault indication
DIN rail mounted device according to DIN 43880, 7 modules

Brand: DEHN
Type: SPD+POP 4 255 C63
Part No.: 900788
or equivalent.

Certificates

Technical data

General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
SPD
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25 °C ... +60 °C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm² solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm² flexible / 25 mm² stranded
Cross-sectional area (PE) (min.)	0.75 mm² solid / flexible
Cross-sectional area (PE) (max.)	6 mm² flexible / 10 mm² solid
Degree of protection protection	IP 20
Capacity	7 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
SPD
SPD according to EN 61643-11 / ... IEC 61643-1/-11	type 2
Max. continuous operating voltage (a.c.) [L-N] (U_C )	275 V
Max. continuous operating voltage (a.c.) [N-PE] (U_C )	255 V
Follow current extinguishing capability [N-PE] (I_fi )	100 A
Nominal discharge current (8/20 µs) [L-N] (I_n )	5 kA
Nominal discharge current (8/20 µs) [N-PE] (I_n )	20 kA
Max. discharge current (8/20 µs) [L-N] (I_max )	15 kA
Max. discharge current (8/20 µs) [N-PE] (I_max )	40 kA
Voltage protection level (U_P )	≤ 1.5 kV
Protective conductor current (I_PE )	≤ 5 µA
Response time [L-N] (t_A )	≤ 25 ns
Response time [N-PE] (t_A )	≤ 100 ns
Max. mains-side overcurrent protection	MCB C 63 A
Short-circuit withstand capability (I_SCCR )	6 kA
Temporary overvoltage (TOV) L-N (U_T )	335 V / 5 s
Temporary overvoltage (TOV) [N-PE] (U_T )	1200 V / 200 ms
TOV characteristic	withstand
Operating state / fault indication	green / red
Number of ports	1
Enclosure material	thermoplastic, grey, UL 94 V-0
Place of installation	indoor installation
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900788 was added to Notepad.

Go to Notepad

Product 900788 was added to the cart.

Go to Web-Shop

Part No. 900760 POP 2 255 C25

GTIN 4013364156135, Customs tariff No. (EU): 85363030, Gross weight: 297.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Protective device POP 2 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C25
Part No.: 900760
or equivalent.

Certificates

Technical data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900760 was added to Notepad.

Go to Notepad

Product 900760 was added to the cart.

Go to Web-Shop

Part No. 900761 POP 2 255 C32

GTIN 4013364156142, Customs tariff No. (EU): 85363030, Gross weight: 317.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Protective device POP 2 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C32
Part No.: 900761
or equivalent.

Certificates

Technical data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900761 was added to Notepad.

Go to Notepad

Product 900761 was added to the cart.

Go to Web-Shop

Part No. 900762 POP 2 255 C40

GTIN 4013364156159, Customs tariff No. (EU): 85363030, Gross weight: 317.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Protective device POP 2 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 1P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 3 modules

Brand: DEHN
Type: POP 2 255 C40
Part No.: 900762
or equivalent.

Certificates

Technical data

General
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A

General
Power supply system	single-phase TT / TN system
Number of poles	1P + N
Nominal a.c. voltage (U_N )	230 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	3 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA

Product 900762 was added to Notepad.

Go to Notepad

Product 900762 was added to the cart.

Go to Web-Shop

Part No. 900765 POP 4 255 C25

GTIN 4013364156166, Customs tariff No. (EU): 85363030, Gross weight: 547.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Protective device POP 4 255 C25
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 25 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C25
Part No.: 900765
or equivalent.

Certificates

Technical data

MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V

POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	25 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA
General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	16 mm²fine-stranded / 25 mm²solid
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715

Product 900765 was added to Notepad.

Go to Notepad

Product 900765 was added to the cart.

Go to Web-Shop

Part No. 900766 POP 4 255 C32

GTIN 4013364156173, Customs tariff No. (EU): 85363030, Gross weight: 580.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Protective device POP 4 255 C32
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 32 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C32
Part No.: 900766
or equivalent.

Certificates

Technical data

MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V

POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	32 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA
General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715

Product 900766 was added to Notepad.

Go to Notepad

Product 900766 was added to the cart.

Go to Web-Shop

Part No. 900767 POP 4 255 C40

GTIN 4013364156180, Customs tariff No. (EU): 85363030, Gross weight: 586.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Protective device POP 4 255 C40
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 40 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C40
Part No.: 900767
or equivalent.

Certificates

Technical data

MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V

POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	40 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA
General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715

Product 900767 was added to Notepad.

Go to Notepad

Product 900767 was added to the cart.

Go to Web-Shop

Part No. 900768 POP 4 255 C63

GTIN 4013364156197, Customs tariff No. (EU): 85363030, Gross weight: 591.00 g, PU: 1.00 pc(s)

Images

Additional information

CAD files

Protective device POP 4 255 C63
Protective device for mains-frequency surges with integrated miniature circuit breaker
POP according to EN 50550
Prewired complete unit, individual devices do not have to be additionally wired
Number pf poles 3P + N
Tripping characteristic MCB / nominal current MCB C 63 A
Rated breaking capacity according to EN 60898 6 kA
DIN rail mounted device according to DIN 43880, 5 modules

Brand: DEHN
Type: POP 4 255 C63
Part No.: 900768
or equivalent.

Certificates

Technical data

MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A
General
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V

POP
Tested to	EN 50550
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	415 V
Tripping time at 275 V a.c.	8 s
Tripping time at 400 V a.c.	120 ms
Max. current at 275 V a.c.	0.4 A
Max. current at 400 V a.c.	0.6 A
Power consumption	0.7 VA
Trip indicator	red
MCB
Tripping characteristic	C
Nominal alternating current (I_L )	63 A
Rated switching capacity (I_cn) acc. to EN 60898	6 kA
General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-25°C to +60°C
Cross-sectional area (L1, L2, L3, N) (min.)	2.5 mm²solid / fine-stranded
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²solid / fine-stranded
Degree of protection protection	IP 20
Capacity	5 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715

Product 900768 was added to Notepad.

Go to Notepad

Product 900768 was added to the cart.

Go to Web-Shop

Part No. 900720 POP SA 3P 230

GTIN 4013364477377, Customs tariff No. (EU): 85363030, Gross weight: 141.37 g, PU: 1.00 pc(s)

Images

Open PDF

Additional information

Protective device POP SA 3P 230
Protective device for
power-frequency overvoltages
for the triggering of external
circuit breakers
POP as per IEC 63052 cat. 4.1.3S2
Number pf poles 3P + N
Adjustable output switching signal
from 12V – 230V
DIN rail mounted device according to
DIN 43880, 2 modules

Brand: DEHN
Type: POP SA 3P 230
Part No.: 900720
or equivalent.

Certificates

Technical data

Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V

General
Power supply system	three-phase TT / TN system
Number of poles	3P + N
Nominal a.c. voltage (U_N )	230 / 400 V
Nominal frequency (f_N )	50 Hz
Operating temperature range (T_U )	-5°C to +45°C
Cross-sectional area (L1, L2, L3, N) (min.)	0.5 mm²solid / flexible
Cross-sectional area (L1, L2, L3, N) (max.)	2.5 mm²flexible / 4 mm²solid
Degree of protection protection	IP 20
Capacity	2 module(s), DIN 43880
Mounting	35 mm DIN rails acc. to EN 60715
Status indication	RGB LED
POP
Tested to	IEC 63052 cat. 4.1.3S2
Max. non-tripping voltage (a.c.)	255 V
Max. tripping voltage (a.c.)	440 V
Tripping time at 400 V a.c.	140 ms

Product 900720 was added to Notepad.

Go to Notepad

Product 900720 was added to the cart.

Go to Web-Shop

SPD+POP+MCB / POP+MCB / POP

Two-pole SPD+POP+MCB

Part No. 900780 SPD+POP 2 255 C25

You are not authorized to download 900780.stp

You are not authorized to download 900780.igs

You are not authorized to download 900780.jt

You are not authorized to download 900780.dwg

You are not authorized to download 900780m_E.dxf

Product 900780 was added to Notepad.

Product 900780 was added to the cart.

Part No. 900781 SPD+POP 2 255 C32

You are not authorized to download 900781.stp

You are not authorized to download 900781.igs

You are not authorized to download 900781.jt

You are not authorized to download 900781.dwg

You are not authorized to download 900780m_E.dxf

Product 900781 was added to Notepad.

Product 900781 was added to the cart.

Part No. 900782 SPD+POP 2 255 C40

You are not authorized to download 900782.stp

You are not authorized to download 900782.igs

You are not authorized to download 900782.jt

You are not authorized to download 900782.dwg

You are not authorized to download 900780m_E.dxf

Product 900782 was added to Notepad.

Product 900782 was added to the cart.

Four-pole SPD+POP+MCB

Part No. 900785 SPD+POP 4 255 C25

You are not authorized to download 900785.stp

You are not authorized to download 900786.igs

You are not authorized to download 900785.jt

You are not authorized to download 900785.dwg

You are not authorized to download 900785m_E.dxf

Product 900785 was added to Notepad.

Product 900785 was added to the cart.

Part No. 900786 SPD+POP 4 255 C32

You are not authorized to download 900786.stp

You are not authorized to download 900786.igs

You are not authorized to download 900786.jt

You are not authorized to download 900786.dwg

You are not authorized to download 900785m_E.dxf

Product 900786 was added to Notepad.

Product 900786 was added to the cart.

Part No. 900787 SPD+POP 4 255 C40

You are not authorized to download 900787.stp

You are not authorized to download 900787.igs

You are not authorized to download 900787.jt

You are not authorized to download 900787.dwg

You are not authorized to download 900785m_E.dxf

Product 900787 was added to Notepad.

Product 900787 was added to the cart.

Part No. 900788 SPD+POP 4 255 C63

You are not authorized to download 900788.stp

You are not authorized to download 900788.igs

You are not authorized to download 900788.jt

You are not authorized to download 900788.dwg

You are not authorized to download 900785m_E.dxf

Product 900788 was added to Notepad.

Product 900788 was added to the cart.

Two-pole POP+MCB

Part No. 900760 POP 2 255 C25

You are not authorized to download 900760.stp

You are not authorized to download 900760.igs

You are not authorized to download 900760.jt

You are not authorized to download 900761.dwg

You are not authorized to download 900760m_E.dxf

Product 900760 was added to Notepad.

Product 900760 was added to the cart.

Part No. 900761 POP 2 255 C32

You are not authorized to download 900761.stp

You are not authorized to download 900761.igs

You are not authorized to download 900761.jt

You are not authorized to download 900761.dwg

You are not authorized to download 900760m_E.dxf

Product 900761 was added to Notepad.

Product 900761 was added to the cart.

Part No. 900762 POP 2 255 C40

You are not authorized to download 900762.stp

You are not authorized to download 900762.igs

You are not authorized to download 900762.jt
