External lightning protection – for safe hospitals.

Preventing damage from lightning strikes and protecting human life are absolutely vital activities for hospitals, with their highly critical infrastructure. This is why it is obligatory for an external lightning protection system to be set up.

During planning, the LPS classes of the individual building areas must be taken into account. For example, operating theatres are subject to LPS class II; offices and ward buildings, LPS class III. For more information on the classes of LPS, please refer to EN 62305-3, Supplement 6.

Detailed planning of the measures is necessary to ensure that all specifications for protection are met.

1: Supporting tube 2: Tripod 2: Tripod/Four-legged stand 3: HVI long Conductor 4: Roof conductor holder 4: Roof conductor holder 5: Conductor holder 6: UNI disconnecting clamp 1: Supporting tube 2: Tripod/Four-legged stand 2: Tripod 3: HVI long Conductor 4: Roof conductor holder 4: Roof conductor holder 5: Conductor holder 6: UNI disconnecting clamp

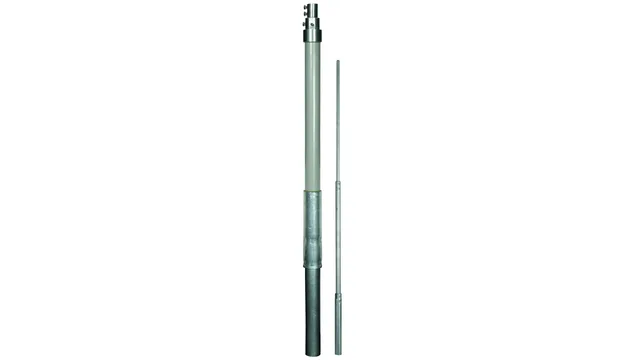

105331

GRP/Al supporting tube with air-termination tip

Supporting tube GRP/Al with internal sealing end and EB spring element for the HVI long Conductor to be used for the installation of a separated (insulated) air-termination system with air-termination rod.

Add  Details

107490

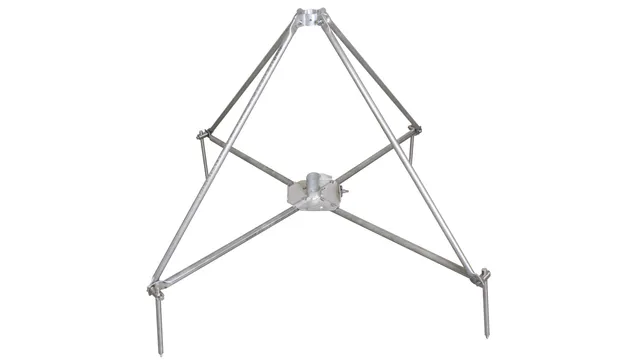

Four-legged stand

Four-legged stand (hinged design) for supporting tubes D 50 mm with side outlet or air-termination rod D 40 mm with reduction accessories.

Add  Details

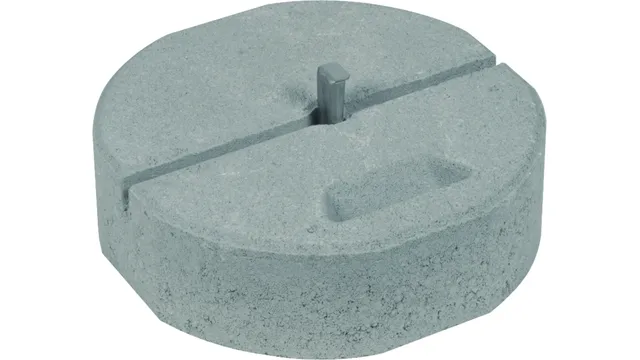

102010

Concrete base

Concrete base for air-termination rods, for protecting small roof-mounted structures on flat roofs and for installing spacers.

Add  Details

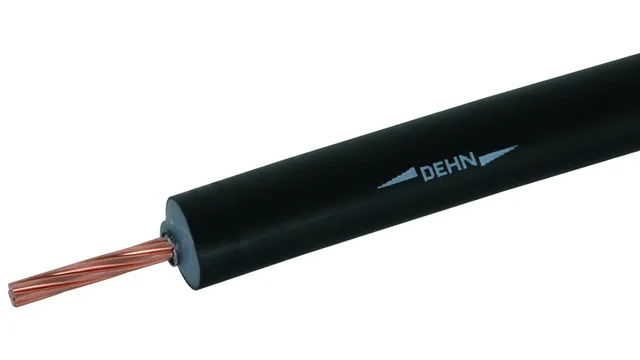

819131

HVI long Conductor

HVI Conductor (high-voltage-resistant, insulated down conductor) for keeping the separation distance from conductive parts according to IEC 62305-3, to prevent dangerous flashover between parts of the external lightning protection system and indoor conductive parts (electrical installation, pipes, etc.).

Add  Details

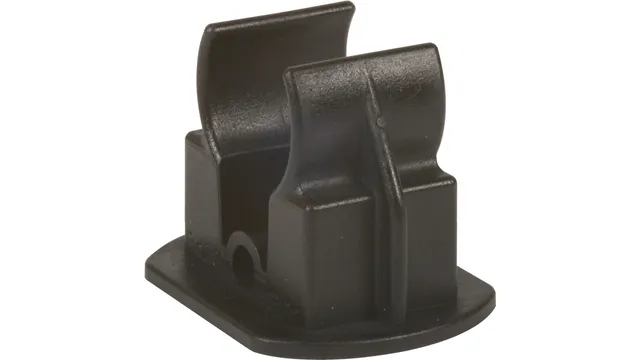

253026

Roof conductor holder for HVI Conductors

Roof conductor holders with conductor supports, type FB, for attaching round conductors or strips (with adapters) with loose cable routing on flat roofs.

Add  Details

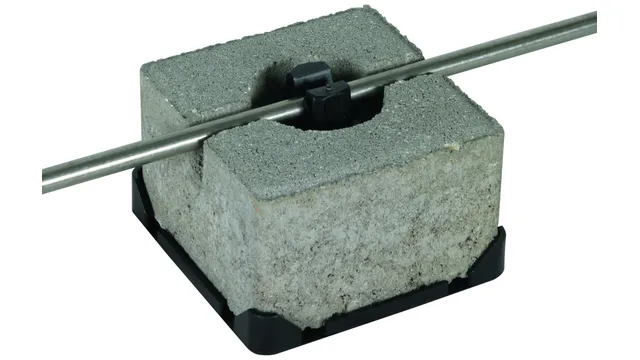

253015

Roof conductor holder

Type FB roof conductor holder with one conductor support, for attaching round conductors or strips (with the help of an adapter) to flat roofs (loose conductor routing).

Add  Details

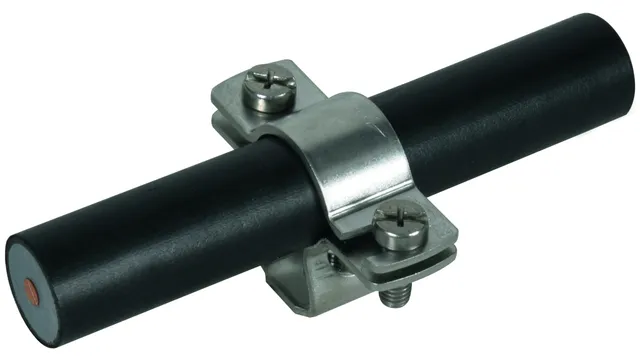

275251

Conductor holder for HVI/CUI Conductors

Conductor holder for HVI Conductor / CUI Conductor, with two-screw clamp, StSt, e.g. for wall mounting.

Add  Details

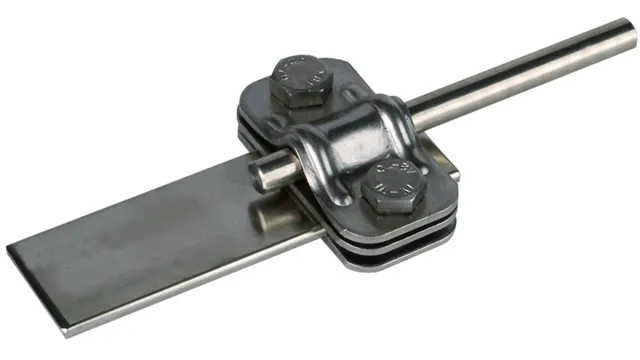

459139

UNI disconnecting clamp

UNI disconnecting clamp according to DIN EN 50164-1, for connecting the down conductors with earth entry rods. With intermediate plate for a round and a flat conductor.

Add  Details

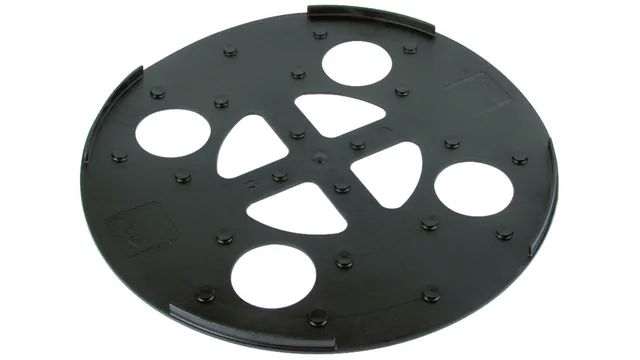

102050

Plastic base plates

Base plate to protect the roof sheeting under the concrete base, large design for the 17 kg base.

Add  Details

The right way to external lightning protection for hospitals.

External lightning protection works using air-termination systems that you install on the roof. As the name suggests, they intercept direct lightning strikes and channel them away safely into the ground. The basis for this is that the external lightning protection system is connected to the earthing and equipotential bonding via the down conductors.

Hospitals have densely packed roof structures. These include, for example, components for heating, ventilation and air conditioning (HVAC), lift shafts or PV systems. If you consider optimisations as part of energy management and a corresponding expansion of solar power generation, free roof space will be reduced even further. This makes it difficult for planning engineers to place the external lightning protection in accordance with the specifications.

The challenge for you: It is imperative that separation distances are maintained between the air-termination system and conductive metallic parts in order to avoid sparking. Due to the lack of space on hospital roofs, however, this is often difficult.

The solution: HVI Conductors. By using these high-voltage-resistant insulated down conductors, you can disregard separation distances and still be sure that lightning currents are safely discharged to the earthing system. That is why HVI Lightning Protection is a reliable and space-saving alternative to conventional lightning protection systems.
