Earthing of
data centres

The basic requirement for the secure operation of all electrical systems in a data centre are a functional earthing system and equipotential bonding. By the implementation phase, everything must be right – retrospective corrections are almost impossible.

Steel strip Connecting clamp Rebar clip Connection clamps/Wall bushing Round wire Cross unit Anti-corrosion tape Earthing pipe clamp Equipotential bonding bar Earthing pipe clamp Steel strip Connecting clamp Rebar clip Connection clamps/Wall bushing Round wire Cross unit Anti-corrosion tape Earthing pipe clamp Equipotential bonding bar Earthing pipe clamp

Product recommendations

852335

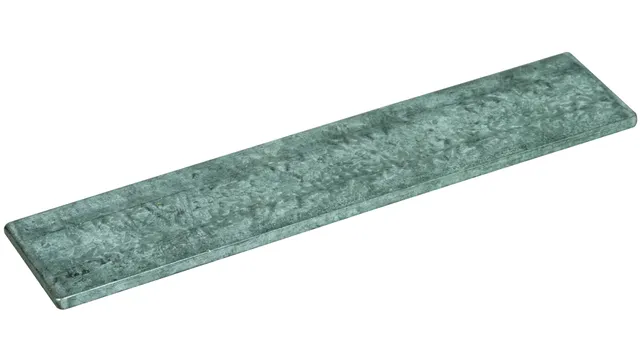

Steel strip

According to DIN EN 62561-2 (VDE 0185-561-2), for use in earthing systems, lightning protection systems and in ring equipotential bonding.

Add  Details

308026

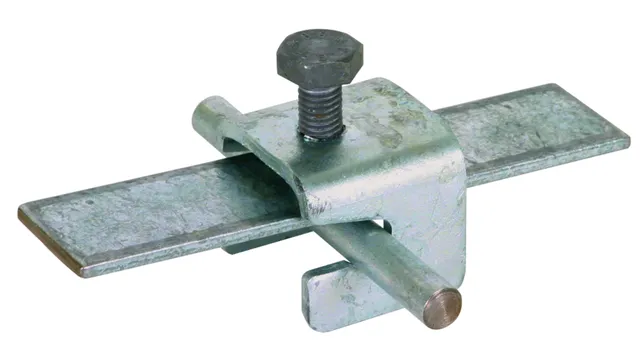

Connecting clamp

For connecting reinforcing steel mesh or reinforcements with round and flat conductors. For T, cross and parallel connections.

Add  Details

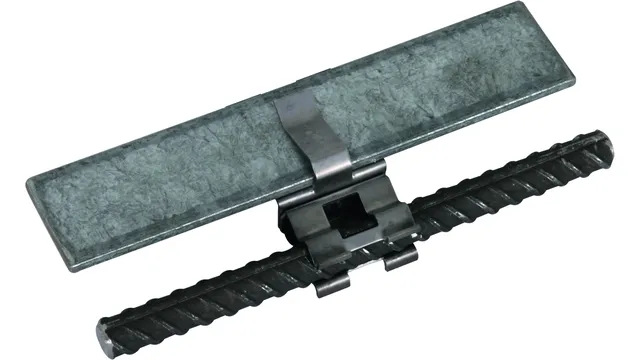

308141

Rebar clip

DEHNclip – for the quick connection of earth electrodes and reinforcements without tools.

Add  Details

478540

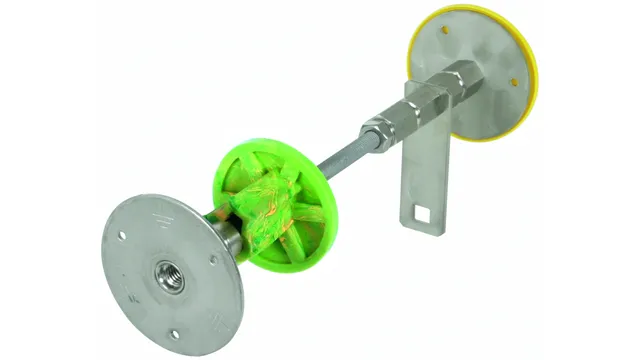

Wall bushing

Water-pressure-tight for watertight concrete construction.

Add  Details

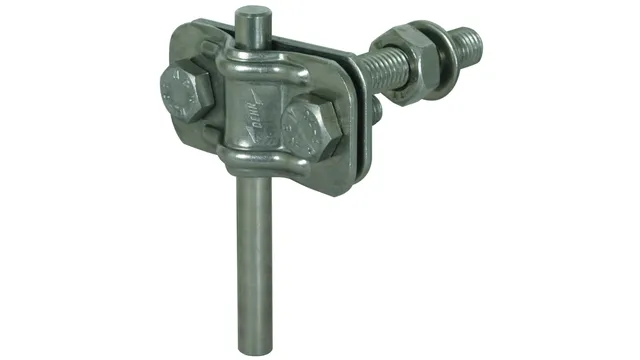

478129

Connection clamps

For connecting round and flat conductors to fixed earthing terminals. Light version, M10, with threaded pin

Add  Details

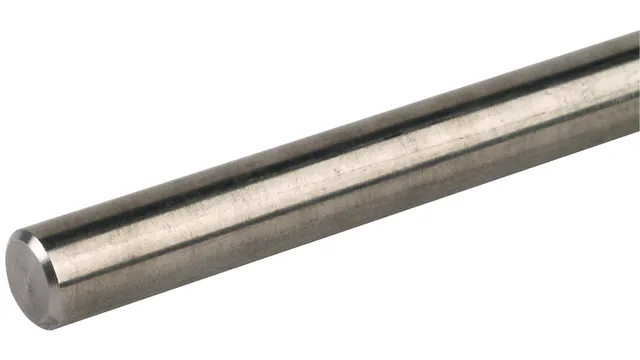

860010

Round wire

For use in lightning protection and earthing systems. As per DIN EN 62561-2 (VDE 0185-561-2).

Add  Details

319209

Cross unit

For above-ground and underground connections.

Add  Details

556125

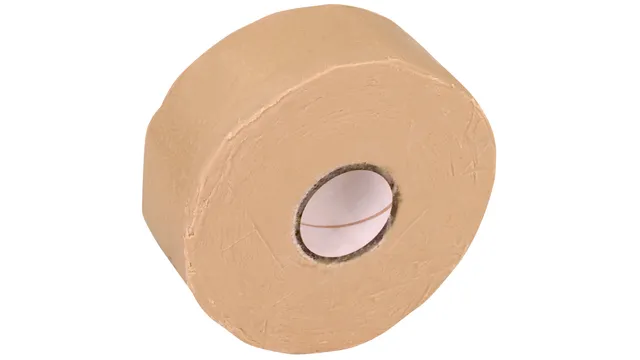

Anti-corrosion tape

For wrapping above-ground and underground connections in accordance with the requirements of DIN 12068. In reels, length 10 m, UV-stabilised.

Add  Details

557125

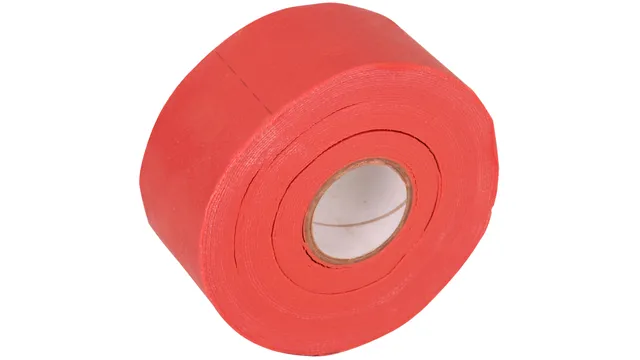

Anti-corrosion tape with perforation

Anti-corrosion tape with perforation for the enclosure of above and underground connections. For use in the ground. Comes in 10-m-long reels. UV-stabilised.

Add  Details

540912

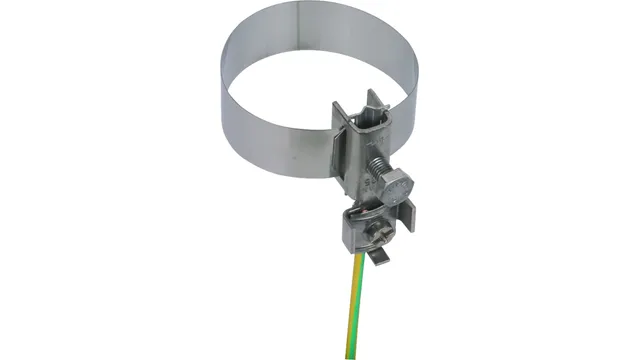

Earthing pipe clamp

For integrating pipes into the protective and functional equipotential bonding as per DIN VDE 0100-410/540, with infinitely adjustable tensioning strap.

Add  Details

563010

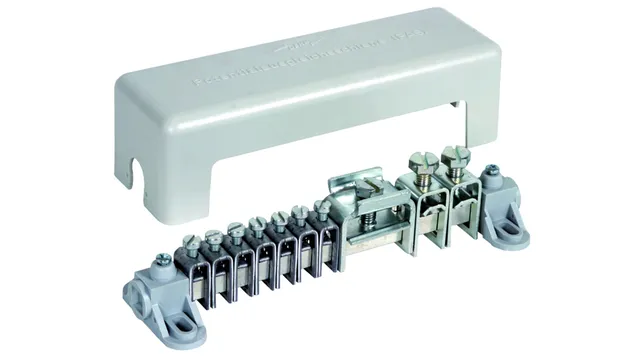

Equipotential bonding bar

For protective and functional equipotential bonding as per DIN VDE 0100-410/540 and lightning equipotential bonding as per DIN EN 62305-3 (VDE 0185-305-3).

Add  Details

407112

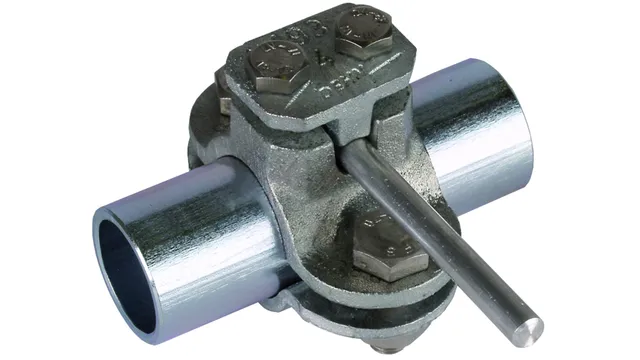

Earthing pipe clamp

For integrating pipes into the protective and functional equipotential bonding as per DIN VDE 0100-410/540 and the lightning equipotential bonding as per DIN EN 62305-3 (VDE 0185-305-3).

Add  Details

Note about standards

For the installation of earthing systems and equipotential bonding networks for buildings, BS 18014 and BS EN 50310 apply, for example. In conjunction with lightning protection  systems taking an LEMP concept into account, the requirements of BS EN 62305-3 and -4 must also be heeded.

Want to know more? Speak to your DEHN experts.
